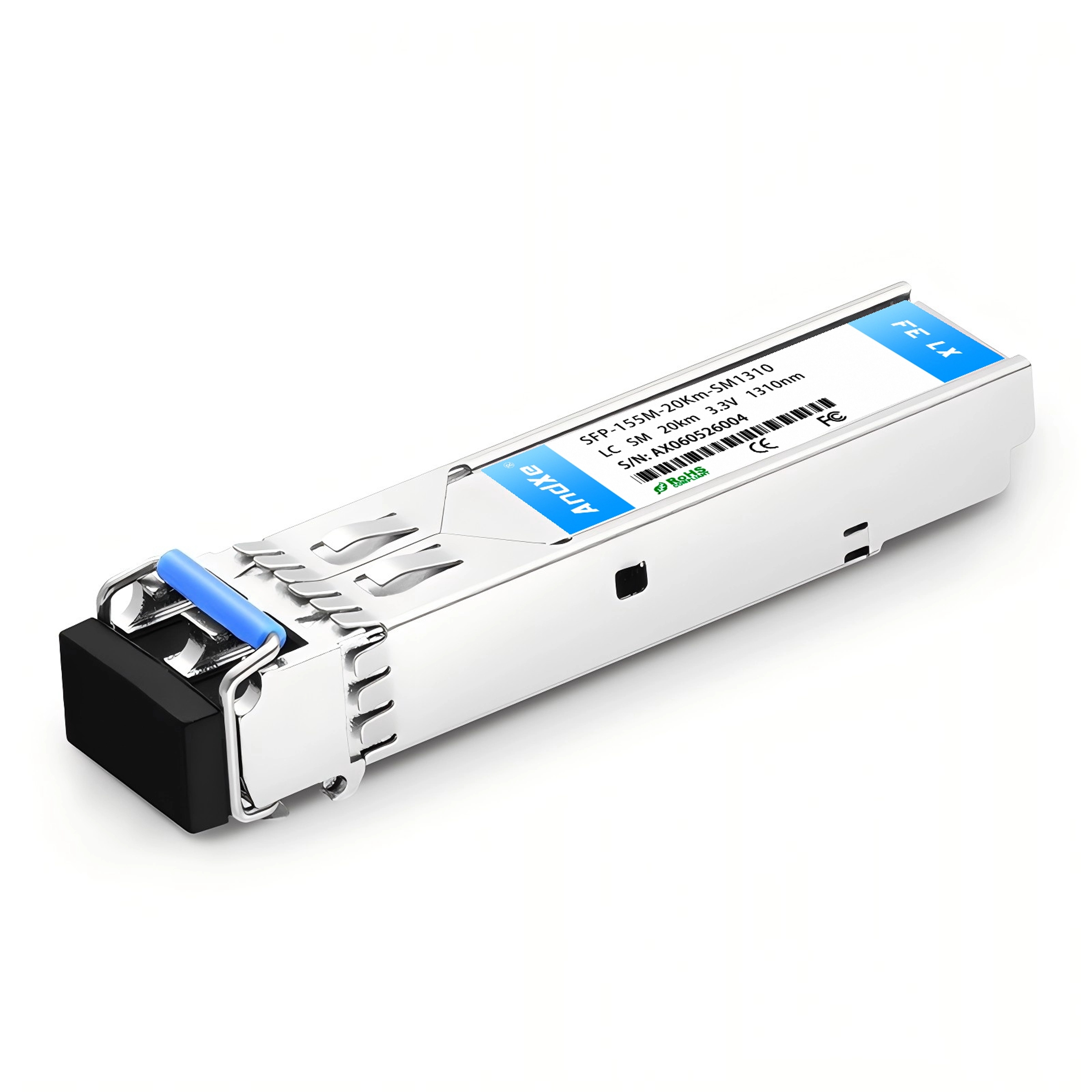

155M 单模1310nm 20km SFP光模块

Description
The SFP transceivers are high performance, cost effective modules supporting data-rate of 155Mbps and 20km transmission distance on 9/125μm SMF.
The transceiver consists of three sections: a laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and DDMI control unit. All modules satisfy class I laser safety requirements.
The transceivers are compliant with the Small Form-Factor Pluggable (SFP) Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Product Features
● Uncooled Laser Diode with MQW Structure
● InGaAs PIN-TIA Photodiode Receiver
● 9/125μm SMF
● DUAL Single Mode Transceiver SFP Footprint
● LC Or SC Optical Interface Are Optional
● Compliant With SFP MSA and SFF-8472
● Digital Diagnostic Monitoring Interface
● Single +3.3V Power Supply
● CML Differential Inputs and Outputs
● LVTTL Signal Detection Output
● Compliant With ITU-T G.957
● Compliant With RoHS and Lead Free
● Metal Enclosure for Lower EMI
● Operating Case Temperature: Standard : 0 to +70°C
Extend : -20 to +85°C
Industrial : -40 to +85°C

Product Applications
● Fast Ethernet
● ATM/SONET/SDH
● Switch/Router
● Other Optical Transmission Systems

Package Diagram
Board Layout Hole Pattern

LC SideInterface

SC Side Interface
