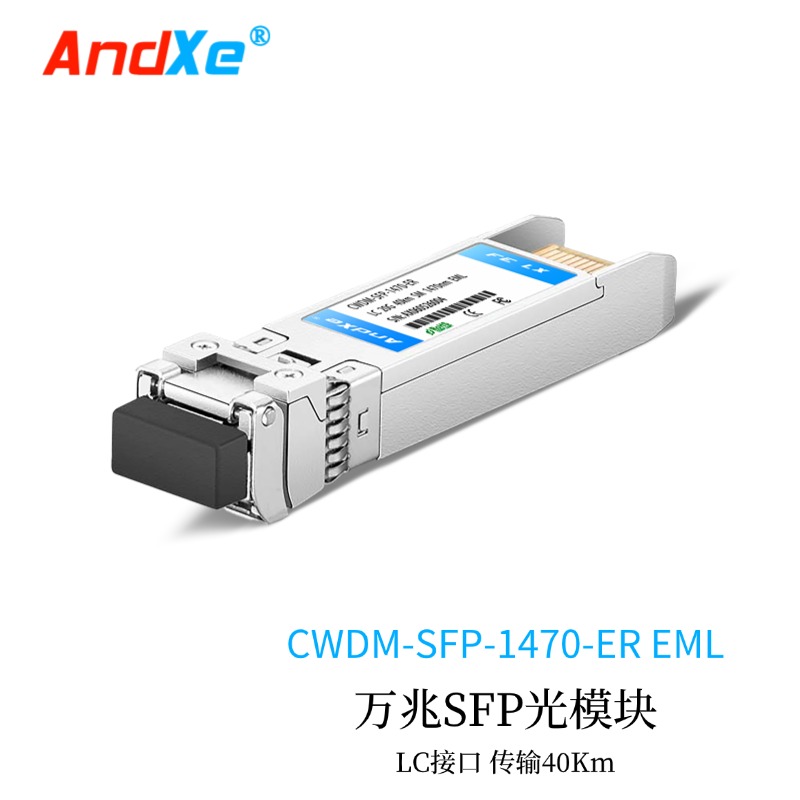

10G SFP+ CWDM Transceiver 40KM 1470~1610nm EML

Features
● 10Gb/s serial optical interface compliant to 802.3ae 10GBASE-ER
● Electrical interface compliant to SFF-8431 specifications for enhanced 8.5 and 10 Gigabit small form factor pluggable module “SFP+”
● CWDM DFB transmitter,PIN photo-detector
● 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface for optical transceivers
● Operating case temperature: 0 to 70 °C or-40 to 85 °C
● ll-metal housing for superior EMI performance
● Low power consumption
● Advanced firmware allow customer system encryption information to be stored in transceiver
● Cost effective SFP+ solution, enables higher port densities and greater bandwidth
● RoHS compliant

Applications
● High-speed storage area networks
● Computer cluster cross-connect
● Custom high-speed data pipes

ABSOLUTE MAXIMUM RATING
These values represent the damage threshold of the module.   Stress in excess of any of the individual  Absolute  Maximum  Ratings  can  cause   immediate  catastrophic  damage  to  the module even if all other parameters are within Recommended Operating Conditions.

Parameters	Symbol	Min.	Max.	Unit
Power Supply Voltage	VCC	0	3.6	V
Storage Temperature	Tc	-40	85	。C
Operating Case Temperature	Tc	0	70	。C
	TI	-40	85
Relative Humidity	RH	5	95	%
RX Input Average Power	Pmax	–	7	dBm

Note：
1、Exceeding any of these values may immediately damage the device.

RECOMMENDED OPERATING ENVIRONMENT
Recommended Operating Environment specifies parameters for which the electrical and optical characteristics hold unless otherwise noted.

Parameters	Symbol	Min.	Typical	Max	Unit
Power Supply Voltage	VCC	3.135	3.3	3.465	V
Power Supply Current	Icc			450	mA
Operating Case Temperature	TC	0	25	70	。C
	TI	-40	25	85

OPTICAL CHARACTERISTICS
The following optical characteristics are defined over the Recommended Operating Environment unless otherwise specified.

Parameters	Unit	Values
Operating Reach	m	40K
Transmitter
Center wavelength (range)	nm	λ+ -6.5
Side Mode Suppression Ratio (min)	dB	30
Launched power
– maximum (Average)	dBm	+4
– minimum (Average)	dBm	-1
Average launch power of OFF transmitter (max)	dBm	-30
Transmitter and Dispersion Penalty(max)	dBm	3
Extinction ratio (min)	dB	6
RIN12 OMA (max)	dB/Hz	-128
Optical Return Loss Tolerance (min)	dB	12
Receiver
Center wavelength (range)	nm	1260-1620
Receive overload (max) in average power(note 1)	dBm	0.5
Receive sensitivity (min) in average power(note 1)	dBm	-16
Receiver Reflectance (max)	dB	-12
Los Assert(min)	dBm	-30
Los Dessert(max)	dBm	-16
Los Hysteresis(min)	dB	0.5
Receive electrical 3dB upper cutoff frequency (max)	GHz	12.3
Receiver power (damage, Max)	dBm	+7

Note：

1、Average optical power shall be measured using the methods specified in TIA/EIA-455-95.
2、Power budget is defined as the different between the Rx sensitivity and the Tx output power of the interface.
3、Path penalty is intended as the power penalty of the interface between back-to-back and the maximum applied dispersion.

ELECTRICAL CHARACTERISTICS
The following electrical characteristics are defined  over the Recommended Operating Environment unless otherwise specified.

Parameter	Symbol	Min.	Typical	Max	Unit	Notes
Data Rate		–	10.3125	–	Gbps
Power Consumption		–	800	1000	mW
Transmitter
Single   Ended   Output Voltage Tolerance		-0.3	–	4	V
C      common      mode voltage tolerance		15	–	–	mV
Tx Input Diff Voltage	VI	180		800	mV
Tx Fault	VoL	-0.3		0.4	V	At 0.7mA
Data  Dependent  Input Jitter	DDJ			0.1	UI
Data Input Total Jitter	TJ			0.28	UI
Receiver
Single   Ended   Output Voltage Tolerance		-0.3	–	4	V
Rx Output Diff Voltage	Vo	300		850	mV
Rx   Output   Rise   and Fall Time	Tr/Tf	30			ps	20% to 80%
Total Jitter	TJ			0.7	UI
Deterministic Jitter	DJ			0.42	UI

MECHANICAL
Comply to SFF-8432  rev. 5.0, the improved Pluggable form factor specification.ation.
